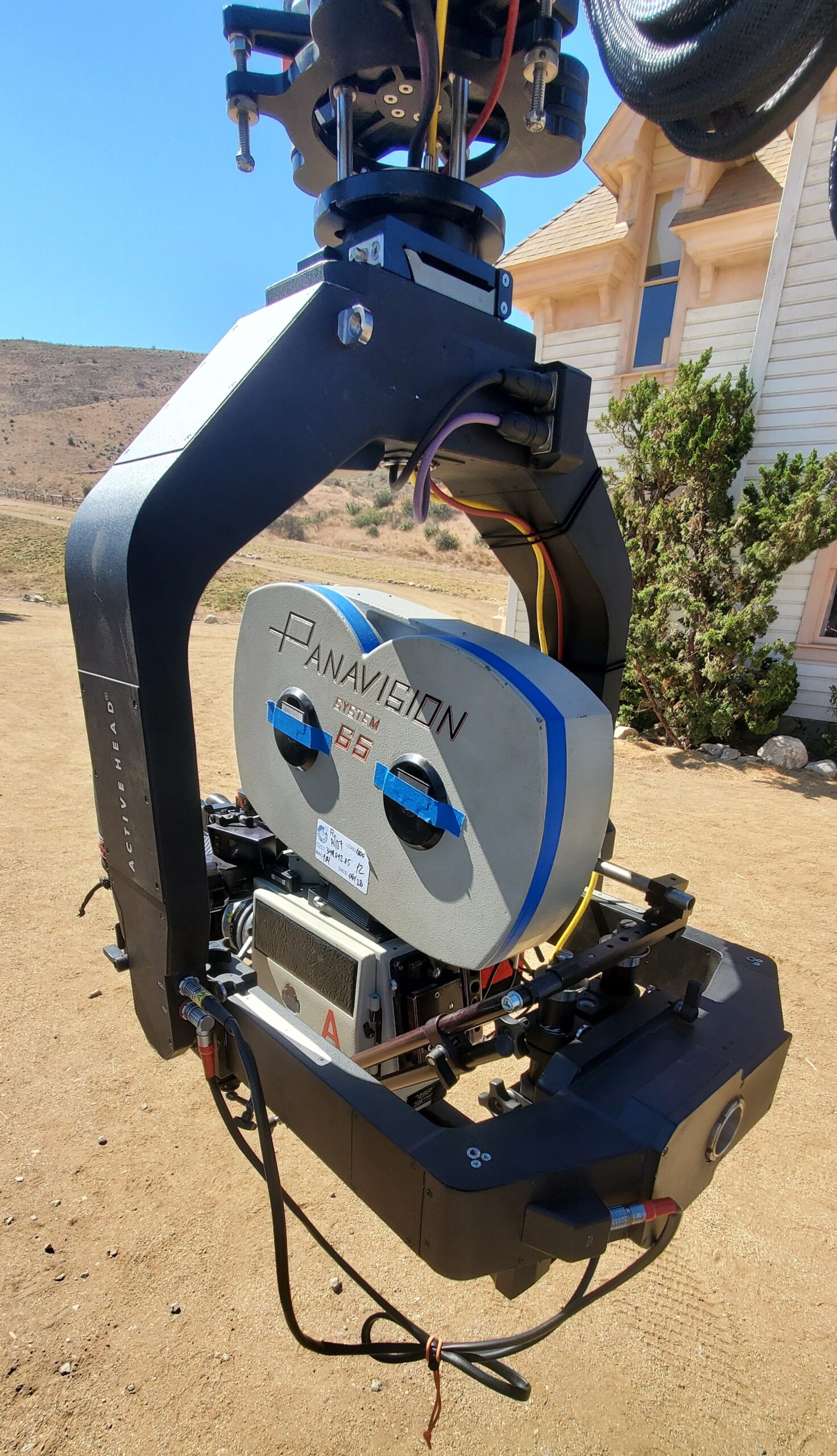

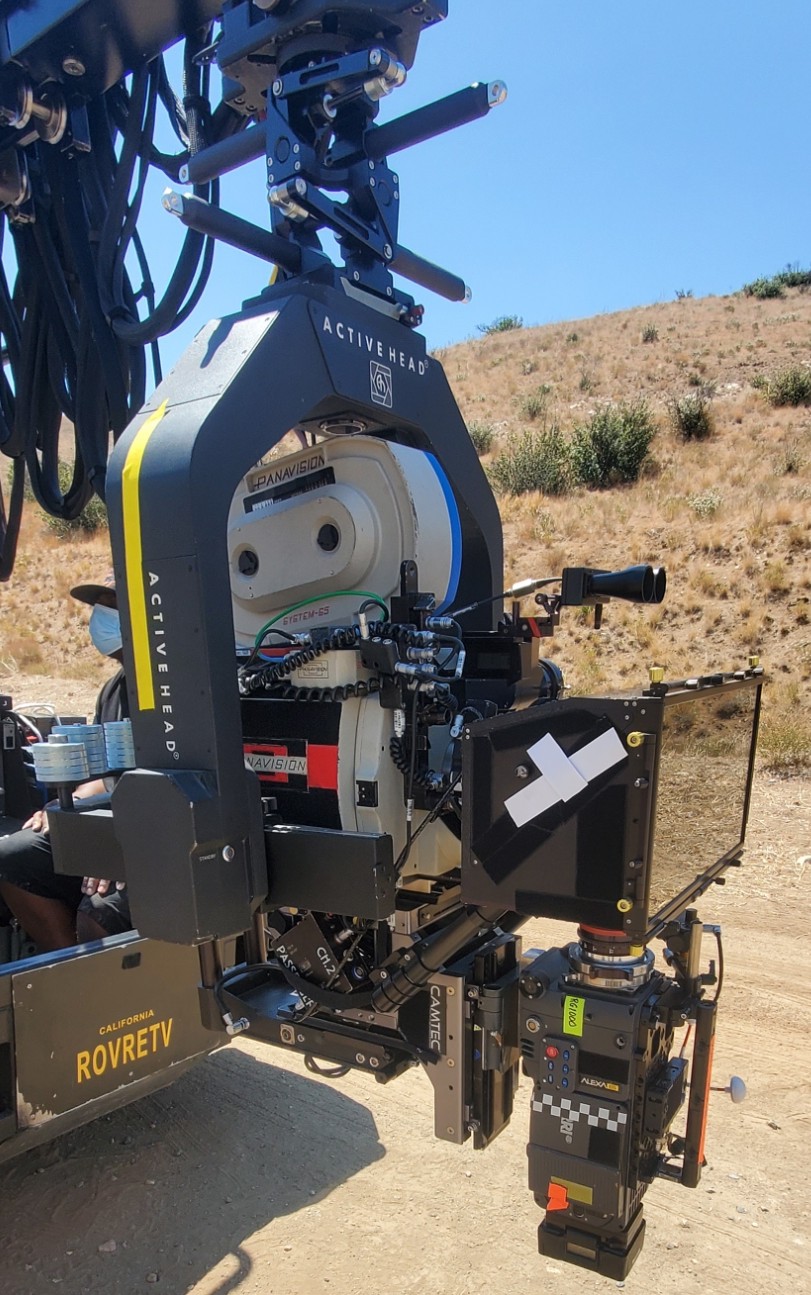

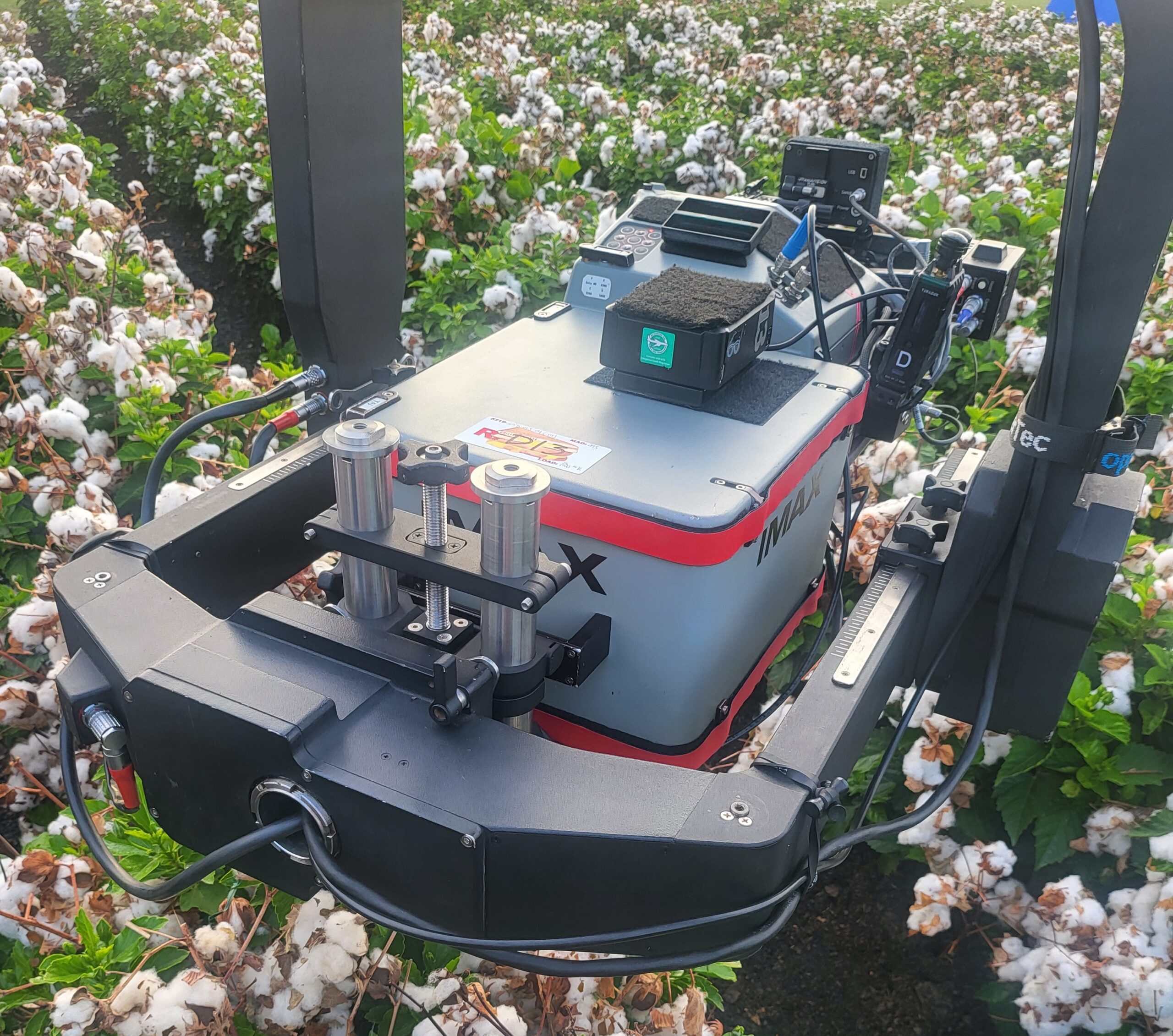

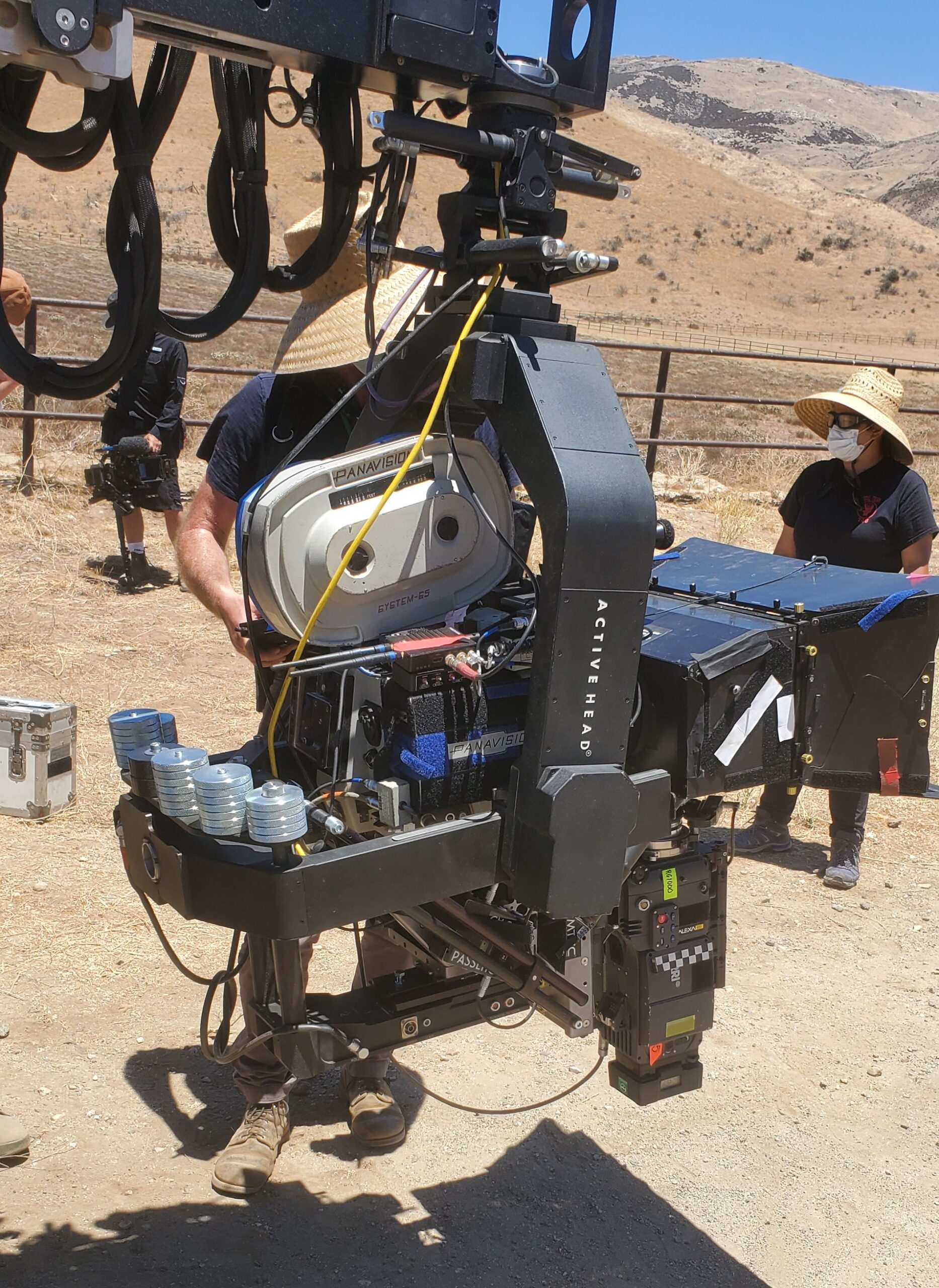

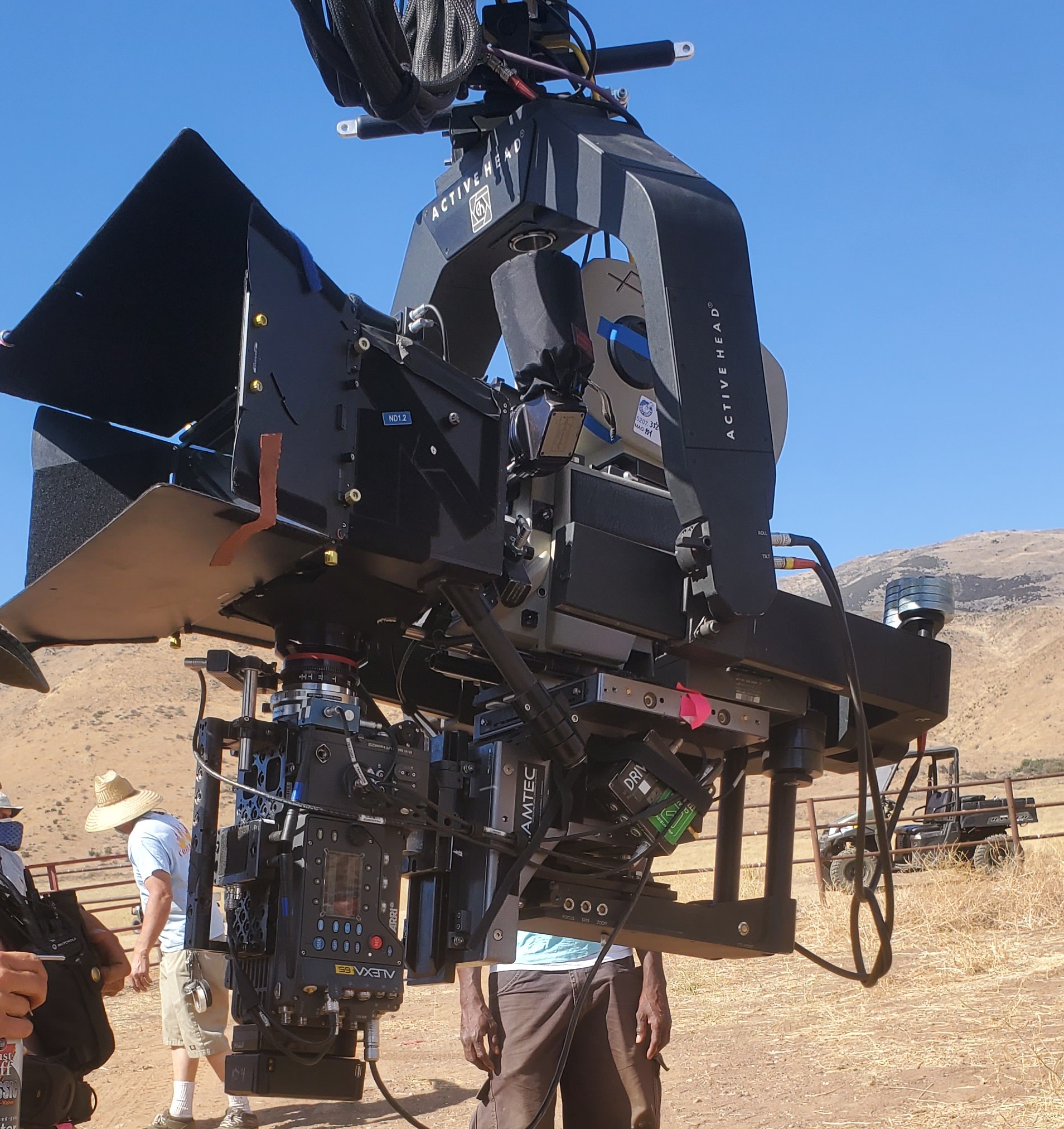

The design of this head allows you to use all of the common types of film and digital cameras. The head is also suitable for small and mid-size 3d rigs. It allows you to achieve high stabilization performance even with the longest and the heaviest lens, such as Optimo 24-290. The head is equipped with a digital lens control system that adds functionality and flexibility. It’s available with a variety of control options such as Hand wheels, Joystick and Pan Bar*.
Improved stabilization level which allows you to achieve a balanced picture even under extremely rough and difficult operating conditions
High angular velocity on all axes Compact Size and light weight
Fast and effective rebalancing and calibration
360 degree pan and roll function
Axis position indication
Solid and reliable construction Quick Assembly
Remote controlled handling of lens Parameters (Focus, Iris, Zoom) Auto horizon
Control capability by cable or wireless
Height: 881 mm/ 34.69 in
Width: 703 mm/ 27.67 in
Depth: 667 mm/ 26.26 in
Power Supply AC: (90-264V); 1kW(peak)
Power Supply DC: (19-72V); 1kW(peak)
Pan angular speed: 270 deg/sec
Tilt angular speed: 270 deg/sec
Roll angular speed: 270 deg/sec
Weight: 32 kg/ 70.5 lbs
Maximum usable focal length: 290 mm
Payload: 45 kg/ 99.2 lbs

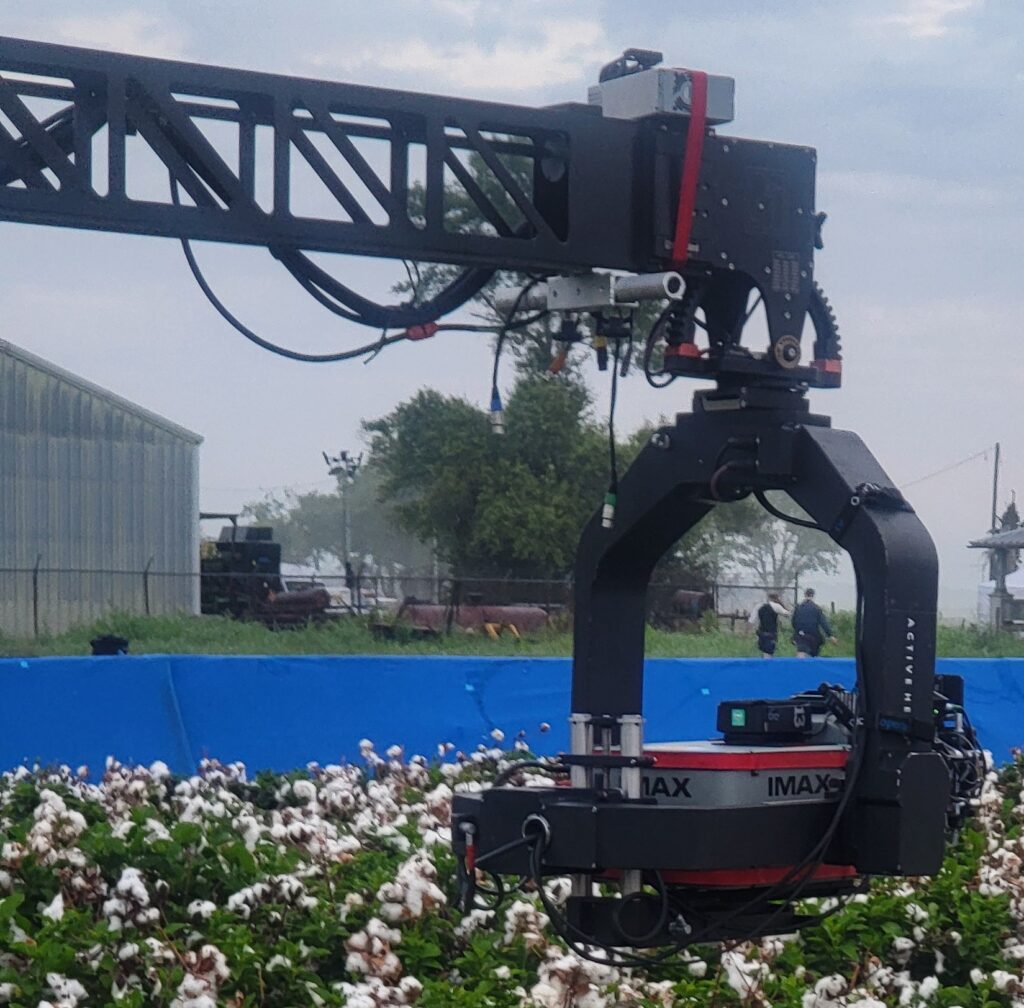

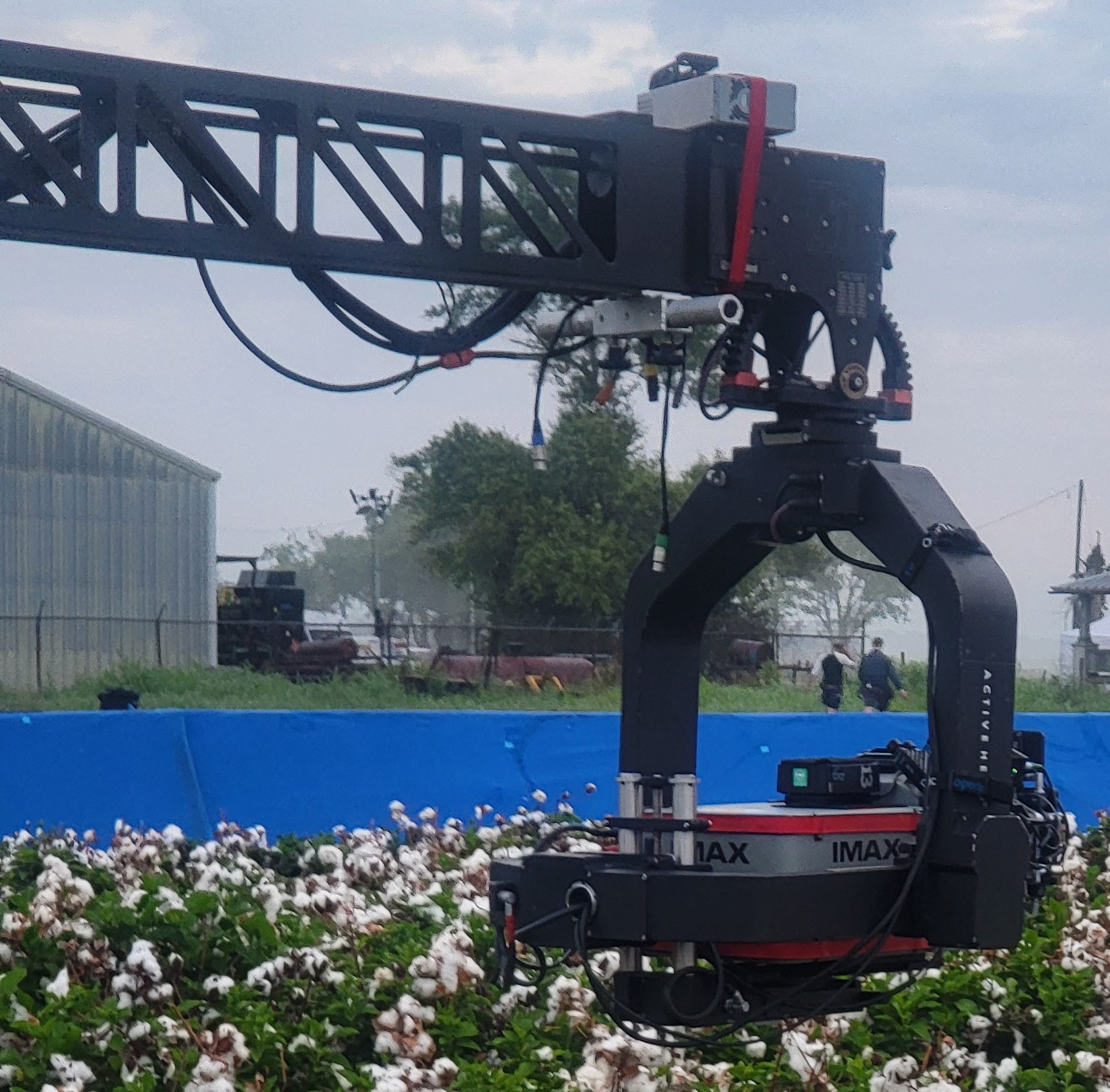

This model fits for all of the common types of Cranes, Remote Controlled Platforms and Helicopter/ Aerial Systems
