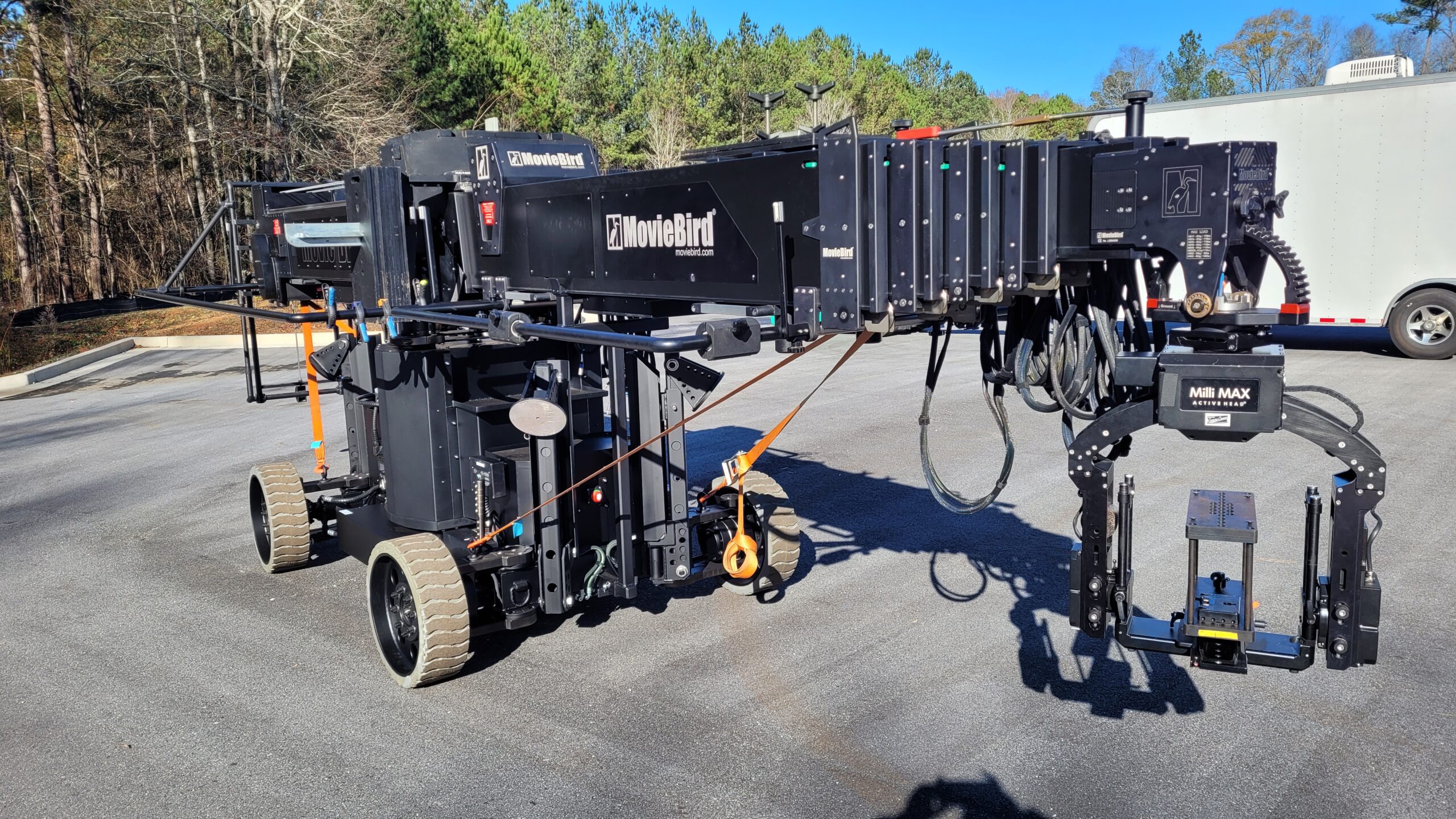

The Heavy Duty Base is an all electric, completely original base created by Hammer Camera Cranes. It was designed with our heaviest cranes in mind to move with ease and be incredibly versatile.
Our base was equipped with long-lasting battery power and an all-encompassing rotating mechanism that can spin with no restraint. Sorry Tony Hawk, 900 degrees wasn’t cutting it.
With Conventional, Crab, and Round steering as well as over six feet of extra height on the post, this base will surely allow you to get the shot with confidence and ease.
TECHNICAL SPECIFICATIONS
- Weight: 4100 lbs (1860 kg) Base Weight w/ 62’ Moviebird Crane Fully Weighted: 10100 lbs (4581 kg)
- Wheelbase: 76” (1.93 m)Length: 97” (2.46 m)
- Width: 69” (1.75 m)
- Height with No Crane: ≈ 49” (1.24 m)
- 87” (2.21 m) with 62’ Moviebird at Lowest Point
- 159 ½” (4.05 m) with 62’ Moviebird at Highest Point

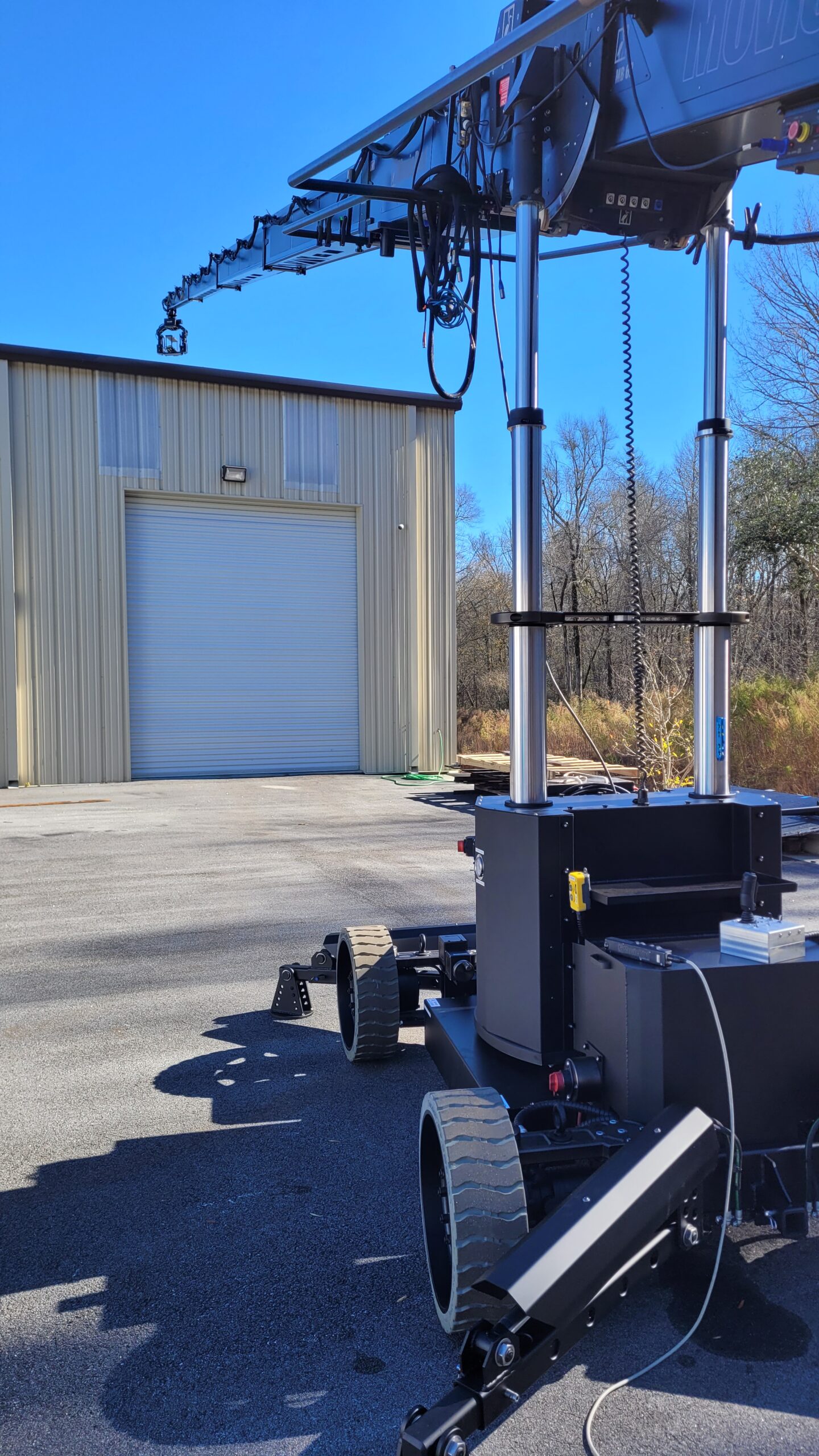

- Column: 3 Stages – Rising From Largest(3) to Smallest(1)
- Stage 3: 23 ½” (0.60 m) Height
- Stage 2: 24 ½” (0.62 m) Height
- Stage 1: 25 ½” (0.65 m) Height
